Predicting the axial crush response of CFRP tubes using three damage-based constitutive models

Loading...

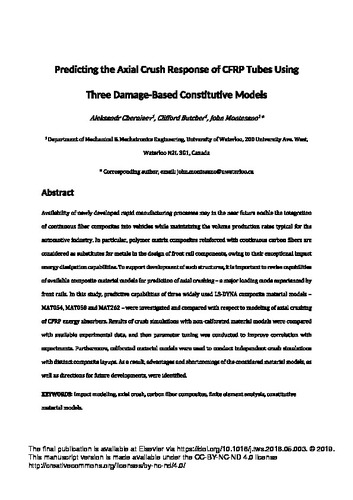

Thumbnail Image

Date

2018-08

Authors

Cherniaev, Aleksandr
Butcher, Clifford
Montesano, John

Advisor

Journal Title

Journal ISSN

Volume Title

Publisher

Elsevier

Abstract

Availability of newly developed rapid manufacturing processes may in the near future enable the integration of continuous fiber composites into vehicles while maintaining the volume production rates typical for the automotive industry. In particular, polymer matrix composites reinforced with continuous carbon fibers are considered as substitutes for metals in the design of front rail components, owing to their exceptional impact energy dissipation capabilities. To support development of such structures, it is important to revise capabilities of available composite material models for prediction of axial crushing – a major loading mode experienced by front rails. In this study, predictive capabilities of three widely used LS-DYNA composite material models – MAT054, MAT058 and MAT262 – were investigated and compared with respect to modeling of axial crushing of CFRP energy absorbers. Results of crush simulations with non-calibrated material models were compared with available experimental data, and then parameter tuning was conducted to improve correlation with experiments. Furthermore, calibrated material models were used to conduct independent crash simulations with distinct composite layups. As a result, advantages and shortcomings of the considered material models, as well as directions for future developments, were identified.

Description

The final publication is available at Elsevier via https://doi.org/10.1016/j.tws.2018.05.003. © 2019. This manuscript version is made available under the CC-BY-NC-ND 4.0 license http://creativecommons.org/licenses/by-nc-nd/4.0/

Keywords

impact modeling, axial crush, carbon fiber composites, finite element analysis, constitutive material models
