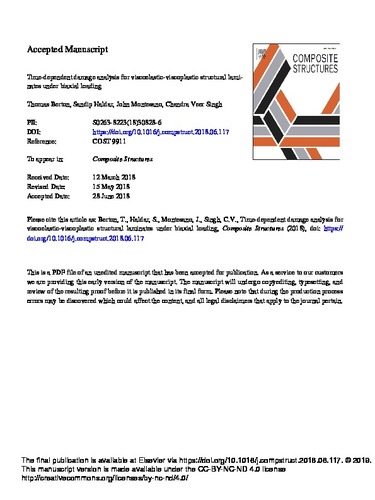

Time-dependent damage analysis for viscoelastic-viscoplastic structural laminates under biaxial loading
Loading...
Date
2018-11-01
Authors
Berton, Thomas
Haldar, Sandip
Montesano, John
Singh, Chandra Veer
Advisor
Journal Title
Journal ISSN
Volume Title
Publisher
Elsevier
Abstract
Many composite structures are required to sustain severe thermo-mechanical loads over extended periods of time, during which viscoelastic and viscoplastic behavior can cause the progression of micro-damage. In this paper, a new computational multi-scale model that couples micro-damage mechanics with Schapery’s theory of viscoelasticity and viscoplasticity has been developed to predict time-dependent damage evolution in laminates under constant biaxial loading. After validation with experimental data, the new model capabilities are showcased by predicting damage evolution in two distinct laminates under different axial and transverse loads over time. It is found that damage evolution in both laminates is highly sensitive to the biaxial loading levels, and that crack multiplication in each ply is dependent on stacking sequence and ply orientation. The developed multi-scale model may be a suitable design tool for composite structures required to endure long-term loads in demanding environments.
Description
The final publication is available at Elsevier via https://doi.org/10.1016/j.compstruct.2018.06.117. © 2019. This manuscript version is made available under the CC-BY-NC-ND 4.0 license
http://creativecommons.org/licenses/by-nc-nd/4.0/
Keywords
glass fibres, creep, damage mechanics, computational modelling, finite element analysis
