The mechanism of pore segregation in the sintered nano Ag for high temperature power electronics applications
Loading...
Date
2018-10-01
Authors
Zhao, Zhenyu
Zou, Guisheng
Zhang, Hongqiang
Ren, Hui
Liu, Li
Zhou, Norman Y.
Advisor
Journal Title
Journal ISSN
Volume Title
Publisher
Elsevier
Abstract
It is widely accepted that nano pores of sintered nanoparticles can coalesce into micro pores during high temperature service. When applying sintered nanoparticles in power electronics, the pore segregation and delamination seriously degrade the bond strength and thermal conductivity, but the reason is still not well understood. In this paper, both finite element analysis and experimental results confirmed that thermal stress is the main driving force for this phenomenon, which was not considered in the previous study. The effect of pore segregation on performance and reliability of power devices is also discussed.
Description

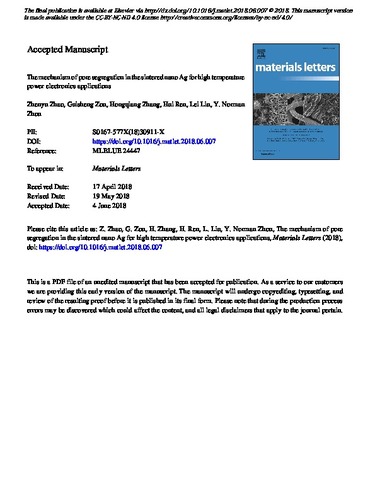

The final publication is available at Elsevier via http://dx.doi.org/10.1016/j.matlet.2018.06.007 © 2018. This manuscript version is made available under the CC-BY-NC-ND 4.0 license http://creativecommons.org/licenses/by-nc-nd/4.0/
Keywords
Electronic packaging, Sintering, Porous material, High temperature reliability
