Determining Off-Normal Solar Optical Properties of Insect Screens

Loading...

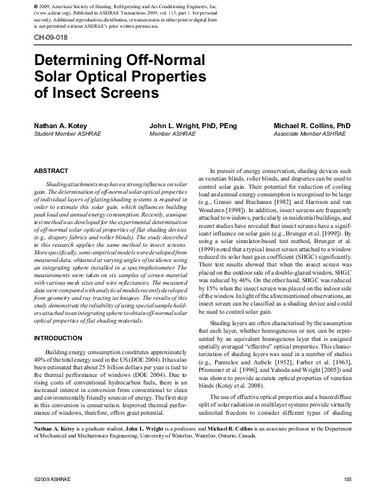

Thumbnail Image

Date

2009

Authors

Wright, John L.
Collins, Michael R.
Kotey, Nathan Amon

Advisor

Journal Title

Journal ISSN

Volume Title

Publisher

American Society of Heating, Refrigerating and Air-Conditioning Engineers

Abstract

Shading attachments may have a strong influence on solar gain. The determination of off-normal solar optical properties of individual layers of glazing/shading systems is required in order to estimate this solar gain, which influences building peak load and annual energy consumption. Recently, a unique test method was developed for the experimental determination of off-normal solar optical properties of flat shading devices (e.g., drapery fabrics and roller blinds). The study described in this research applies the same method to insect screens. More specifically, semi-empirical models were developed from measured data, obtained at varying angles of incidence using an integrating sphere installed in a spectrophotometer. The measurements were taken on six samples of screen material with various mesh sizes and wire reflectances. The measured data were compared with analytical models recently developed from geometry and ray tracing techniques. The results of this study demonstrate the reliability of using special sample holders attached to an integrating sphere to obtain off-normal solar optical properties of flat shading materials.

Description

© 2009, American Society of Heating, Refrigerating and Air-Conditioning Engineers, Inc. (www.ashrae.org). Published in ASHRAE Transactions 2009, vol. 115, part 1. For personal use only. Additional reproduction, distribution, or transmission in either print or digital form is not permitted without ASHRAE’s prior written permission.

Keywords

Fenestration, Insect screen, Solar, Simulation
