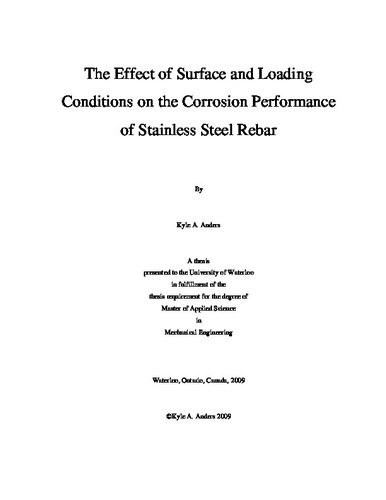

The Effect of Surface and Loading Conditions on the Corrosion Performance of Stainless Steel Rebar

Loading...
Thumbnail Image

Date

2009-01-22T19:28:55Z

Authors

Anders, Kyle

Advisor

Journal Title

Journal ISSN

Volume Title

Publisher

University of Waterloo

Abstract

Deterioration of reinforced concrete structures due primarily to chloride induced corrosion of plain carbon-steel reinforcement is a widespread problem, particularly in areas close to marine environments and where de-icing salts are used to keep roadways clear of ice. Replacing plain carbon-steel rebar with highly corrosion resistant stainless steel rebar has been shown to greatly increase the lifespan of concrete structures in harsh environments, and yields favourable life-cycle costs despite high initial costs. In attempt to lower stainless steel rebar’s initial cost of processing, this research compared its corrosion resistance in the pickled (mill scale removed) and as-rolled (mill scale intact) surface conditions. Rebar was embedded in highly-chloride contaminated concrete, and corrosion performance between the two surface types was compared in order to determine if conventional pickling of stainless steel rebar is necessary. A second part of this research addressed possible concern of reduced corrosion resistance of pickled stainless steel rebar in concrete exposed to chlorides when subjected to dynamic loading due to micro-motion at the concrete/crack interface. It was concluded that as-rolled stainless steel rebar in aggressive environments would provide sufficient corrosion resistance for the 75 year lifespan currently specified by the Canadian Bridge Code (CAN/CSA-S6-06, 2006), however it is recommended that monitoring of these specimens be continued to ensure high corrosion rates and/or concrete cracking do not develop. As well, investigation into the effects crevice corrosion cells found in typical concrete structures could have on as-rolled stainless steel rebar’s corrosion resistance should be undertaken. With regard to loading conditions, no significant evidence was found suggesting that pickled stainless steel rebar has reduced corrosion resistance when loaded dynamically versus statically. Therefore pickled stainless steel rebar is recommended for use in dynamically loaded concrete structures if others factors permit. However, the higher electrochemical noise measured during cyclic loading suggests that corrosion behaviour could be influenced largely by frequency of loading, and so further study should be undertaken for applications involving more extreme cyclic loading conditions than those used in this experiment.

Description

Keywords

corrosion, stainless steel, concrete, rebar
