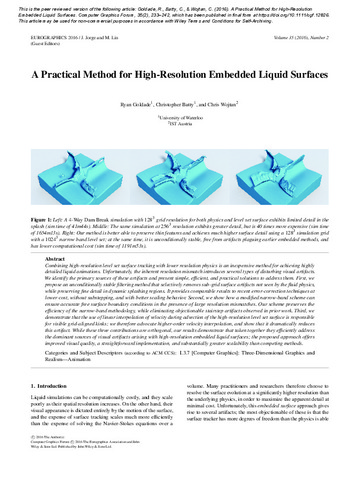

A Practical Method for High-Resolution Embedded Liquid Surfaces
Loading...
Date
2016-05-01
Authors
Goldade, Ryan
Batty, Christopher
Wojtan, Chris
Journal Title
Journal ISSN
Volume Title
Publisher
Wiley
Abstract
Combining high-resolution level set surface tracking with lower resolution physics is an inexpensive method for achieving highly detailed liquid animations. Unfortunately, the inherent resolution mismatch introduces several types of disturbing visual artifacts. We identify the primary sources of these artifacts and present simple, efficient, and practical solutions to address them. First, we propose an unconditionally stable filtering method that selectively removes sub-grid surface artifacts not seen by the fluid physics, while preserving fine detail in dynamic splashing regions. It provides comparable results to recent error-correction techniques at lower cost, without substepping, and with better scaling behavior. Second, we show how a modified narrow-band scheme can ensure accurate free surface boundary conditions in the presence of large resolution mismatches. Our scheme preserves the efficiency of the narrow-band methodology, while eliminating objectionable stairstep artifacts observed in prior work. Third, we demonstrate that the use of linear interpolation of velocity during advection of the high-resolution level set surface is responsible for visible grid-aligned kinks; we therefore advocate higher-order velocity interpolation, and show that it dramatically reduces this artifact. While these three contributions are orthogonal, our results demonstrate that taken together they efficiently address the dominant sources of visual artifacts arising with high-resolution embedded liquid surfaces; the proposed approach offers improved visual quality, a straightforward implementation, and substantially greater scalability than competing methods.
Description
This is the peer reviewed version of the following article: Goldade, R., Batty, C., & Wojtan, C. (2016). A Practical Method for High-Resolution Embedded Liquid Surfaces. Computer Graphics Forum, 35(2), 233–242, which has been published in final form at https://doi.org/10.1111/cgf.12826. This article may be used for non-commercial purposes in accordance with Wiley Terms and Conditions for Self-Archiving.
Keywords
Three-Dimensional Graphics And Realism, Animation, Fluid Simulation, Level Set, Smoke, Topology, Water
