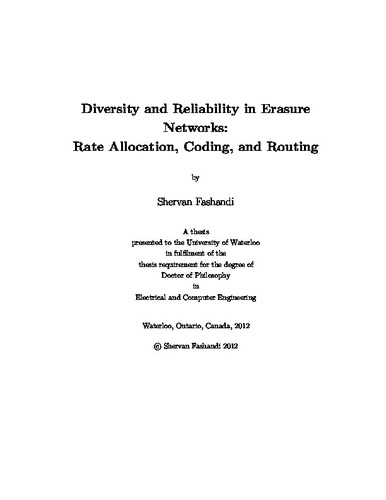

Diversity and Reliability in Erasure Networks: Rate Allocation, Coding, and Routing

Loading...
Thumbnail Image

Date

2012-01-25T20:20:00Z

Authors

Fashandi, Shervan

Advisor

Journal Title

Journal ISSN

Volume Title

Publisher

University of Waterloo

Abstract

Recently, erasure networks have received significant attention in the literature as they are used to model both wireless and wireline packet-switched networks. Many packet-switched data networks like wireless mesh networks, the Internet, and Peer-to-peer networks can be modeled as erasure networks. In any erasure network, path diversity works by setting up multiple parallel connections between the end points using the topological path redundancy of the network. Our analysis of diversity over erasure networks studies the problem of rate allocation (RA) across multiple independent paths, coding over erasure channels, and the trade-off between rate and diversity gain in three consecutive chapters. In the chapter 2, Forward Error Correction (FEC) is applied across multiple independent paths to enhance the end-to-end reliability. We prove that the probability of irrecoverable loss (P_E) decays exponentially with the number of paths. Furthermore, the RA problem across independent paths is studied. Our objective is to find the optimal RA, i.e. the allocation which minimizes P_E. Using memoization technique, a heuristic suboptimal algorithm with polynomial runtime is proposed for RA over a finite number of paths. This algorithm converges to the asymptotically optimal RA when the number of paths is large. For practical number of paths, the simulation results demonstrate the close-to-optimal performance of the proposed algorithm. Chapter 3 addresses the problem of lower-bounding the probability of error (PE) for any block code over an input-independent channel. We derive a lower-bound on PE for a general input-independent channel and find the necessary and sufficient condition to meet this bound with equality. The rest of this chapter applies this lower-bound to three special input-independent channels: erasure channel, super-symmetric Discrete Memoryless Channel (DMC), and q-ary symmetric DMC. It is proved that Maximum Distance Separable (MDS) codes achieve the minimum probability of error over any erasure channel (with or without memory). Chapter 4 addresses a fundamental trade-off between rate and diversity gain of an end-to-end connection in erasure networks. We prove that there exist general erasure networks for which any conventional routing strategy fails to achieve the optimum diversity-rate trade-off. However, for any general erasure graph, we show that there exists a linear network coding strategy which achieves the optimum diversity-rate trade-off. Unlike the previous works which suggest the potential benefit of linear network coding in the error-free multicast scenario (in terms of the achievable rate), our result demonstrates the benefit of linear network coding in the erasure single-source single-destination scenario (in terms of the diversity gain).

Description

Keywords

Erasure networks, Diversity, Routing, Internet, Linear network coding, Diversity-rate trade-off, Path diversity, rate allocation, MDS codes, Forward error correction
