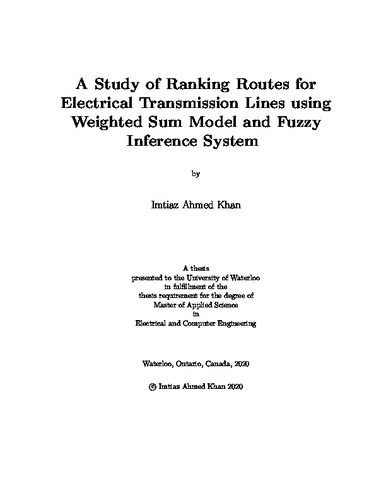

A Study of Ranking Routes for Electrical Transmission Lines using Weighted Sum Model and Fuzzy Inference System
Loading...
Date
2020-01-22
Authors
Khan, Imtiaz Ahmed
Journal Title
Journal ISSN
Volume Title
Publisher
University of Waterloo
Abstract
Selecting a route is the first step in building a new electrical transmission line. The most common practice in selecting a route involves ranking possible route options, which is a complex process demanding many decision considerations be taken into account. Even to this day, the ranking process is mainly done manually by humans using printed maps and field surveys, making it time-consuming and prone to errors.
This thesis studies the most common decision considerations that affect the process of ranking a set of route options and classifies them into four main categories. Then, the work proposes a methodology to automate the process of ranking routes for an electrical transmission line and implements it using Geographic Information System (GIS), image processing techniques, and Weighted Sum Model (WSM). It evaluates the effectiveness of the methodology by comparing the results obtained with industrial results of an actual project in Saskatoon, Canada. The preliminary results are very promising. Out of five route options, the proposed methodology ranks the top two options accurately, and it successfully identifies the least-preferred route options.
To validate the methodology further, the thesis generates synthetic data and tests it with various simulated scenarios. The work generates random routes and hypothetical features, using perturbation and image processing techniques, to test the methodology with more route options and decision considerations, respectively. In the process of validation, it also improves the accuracy of the methodology by refining the WSM. The methodology with refined WSM successfully outputs expected results when tested with one hundred and fifty five routes and taking six decision considerations into account.
The thesis also implements and tests the methodology using Fuzzy Inference System (FIS), instead of WSM, to mimic the human decision process and to allow users to dictate the importance of different decision considerations using linguistic variables. It then compares the two methods and discusses their advantages and disadvantages. Both methods perform well and have around 80% similarity in the outputs produced. However, they are both unique in their own ways. FIS allows users to describe their preferences using linguistic variables making it more user friendly, while, WSM is more predictable and easier to fine tune results. Thus, the thesis presents two ways of automating the process of ranking routes for an electrical transmission line.
Description
Keywords
route ranking, corridor selection, transmission lines, weighted sum model, fuzzy inference system
