Kinodynamic Planning with μ-Calculus Specifications

Loading...

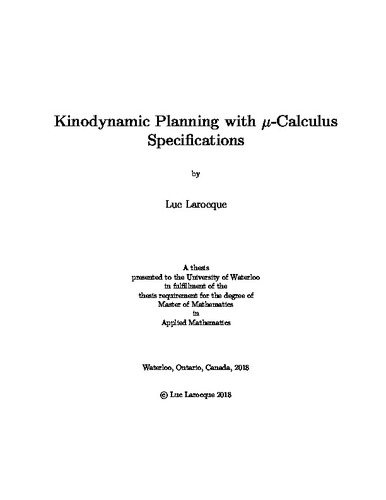

Thumbnail Image

Date

2018-09-19

Authors

Larocque, Luc

Advisor

Liu, Jun

Journal Title

Journal ISSN

Volume Title

Publisher

University of Waterloo

Abstract

Motion planning problems involve determining appropriate control inputs to guide a system towards a desired endpoint. Sampling-based motion planning was developed as a technique for discretizing the state space of systems with complex environments. This makes the sampling-based method especially useful in robotics, where robots are expected to perform tasks in unknown, changing, or cluttered environments. On the other hand, temporal logic presents a means of prescribing the desired behaviour of a system. In the area of formal methods, researchers seek to solve problems in such a way that synthesized solutions provably satisfy a given temporal logic specification. In this thesis, we investigate combining the flexibility of sampling-based planning with the ability to specify the high-level behaviour of an autonomous system with the temporal logic known as mu-calculus. While using temporal logic specifications with motion planning has been heavily researched, reliance on an available steering function is often impractical and suited only to basic problems with linear dynamics. This is because a steering function is a solution to an optimal two-point boundary value problem (OBVP); thus far, mathematicians have yet to find analytic solutions to such problems in all but the simplest of cases. Addressing this issue, we have developed a means of using the motion planning algorithm SST* in combination with a local model checking procedure to solve kinodynamic planning problems with deterministic mu-calculus specifications without using a steering function. The procedure involves combining only the most pertinent information from multiple Kripke structures in order to create one abstracted Kripke structure storing the best paths to all possible proposition regions of the state-space. A linear-quadratic regulator (LQR) feedback control policy is then used to track these best paths, effectively connecting the trajectories found from multiple Kripke structures. Simulations demonstrate that it is possible to satisfy a complex liveness specification involving infinitely often reaching specified regions of state-space using only forward propagation of the system dynamics. We proceed to repurpose this tool for real-time quadrotor motion planning with temporal logic specifications. The dynamical system is derived, and a real-time planning framework is presented based on a variant of the FMT* planning algorithm. Despite requiring a steering function, an argument is presented which allows finding OBVP solutions only for an approximation of the full dynamics. The notion of an abstracted Kripke structure is then applied in the context of quadrotor kinodynamic planning, allowing for rapid model checking and ensuring high-quality feasible solutions satisfying a given deterministic mu-calculus specification.

Description

Keywords

sampling, motion planning, kinodynamic, mu-calculus, temporal logic, quadrotor, steering, SST, FMT, robotics, planning
