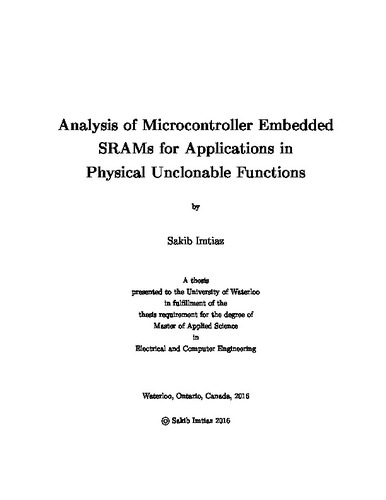

Analysis of Microcontroller Embedded SRAMs for Applications in Physical Unclonable Functions
Loading...
Date
2016-08-30
Authors
Imtiaz, Sakib
Advisor
Sachdev, Manoj
Wright, Derek
Wright, Derek
Journal Title
Journal ISSN
Volume Title
Publisher
University of Waterloo
Abstract
The growth of the Internet of Things (IoT) market has motivated widespread proliferation
of microcontroller- (MCU) based embedded systems. Suitable due to their abundance,
low cost, low power consumption and small footprint. The memory architecture typically
consists of volatile memory such as block(s) of SRAM, and non-volatile memory (NVM)
for code storage. Authentication and encryption safeguard these endpoints within an IoT
framework, which requires storage of a secure key. Keys stored within integrated circuits
(ICs) are susceptible to attack via reverse engineering of the NVM. Newer approaches use
Physical Unclonable Functions (PUFs), which produce unique identi ers that takes advantage
of device-level randomness induced by manufacturing process variation in silicon.
The unclonable property of PUFs is demonstrated with an analytical model. The unpredictable
yet repeatable start-up values (SUVs) of SRAM bit-cells form the basis of an
SRAM PUF. Performance measures, such as reliability, randomness, symmetry, and stability,
dictate the quality of a PUF. Two commercial o -the-shelf (COTS) ARM-Cortex based
MCU products, the STM32F429ZIT6U and ATSAMR21G18A, underwent automated and
manual power cycling experiments that examined their embedded SRAM SUVs. The
characterization framework provided acquires data via debug software and a developed C
program, power cycling using a USB controlled relay and post-processing using Python.
Applications of PUFs include cryptographic key generation, device identi cation and true
random number hardware generation.
Statistical results and a comparative analysis are presented. Amongst the total bitcell
count of the embedded SRAM in STM and ATSAM MCUs, 36:86% and 28:86% are
classi ed as non- or partially-skewed, respectively across N = 10; 000 samples. The Atmel
MCU outperforms the STM MCU in reliability by 1.42 %, randomness by 0.65 % and
stability by 8.00 %, with a 4.74 % SUV bias towards a logic '1'. Max errors per 128-bit
data item is 22 and 38 bits for MCU #1 and MCU #2, respectively. The STM MCU
exhibits column-wise correlation illustrated in a heatmap, where the Atmel MCU shows a
random signature. The embedded SRAM in the Atmel MCU outperforms the STM MCU's
and is thereby considered the more suitable PUF.
Description
Keywords
static random access memory (SRAM), physical unclonable function (PUF), thesis, SRAM PUF, integrated circuit (IC), embedded devices
